• Gate Length and Weight - Up to 20' in length and 1000 lbs
• Gate Materials -Wood, Steel, Aluminum, Vinyl, Chain Link, and more
• Gate Post or Column Size (pull to open design) - Unlimited; operator should be set up so drive shaft is 31.5' from centerline of hinge
• Power - Battery (not included) and Low Voltage Trickle Charge (included; 12V DC system)
• Solar Compatible - Yes

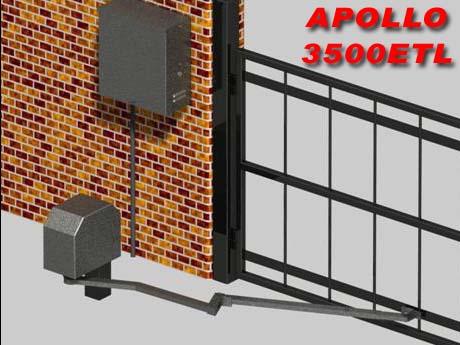

The Apollo 3500ETL Single Opener is a practical system that allows for easy installation. With the additions, a 5' long, 4'x4' steel post with the mounting plate pre-mounted on top, the customer saves the time and money necessary in finding a welder for installation. Similarly, because this opener uses a low voltage charge, it is unnecessary to run 110AC to the gate. Also, the low voltage design allows the customer to use a household outlet within 1,000 ft. of the operator by running a 14-guage low voltage wire between the two. For customers who are eco-friendly, or who wish to save on electrical bills, it is also possible to use a solar panel to charge the battery with the same wire. The Apollo 3500ETL's large-sized NEMA 3R control box can hold a larger battery than many other units. This means the unit has the capacity for extra power storage with a deep cycle marine battery (not included), providing enough energy for up to 300 cycles, or approximately 30 days before the necessary recharge.

In addition to the Apollo 3500ETL's low voltage convenience and eco-friendly options, the unit is durable and well-designed. The opener uses the sophisticated 800 series control board, and has a new arm design that eliminates major pinch points. Likewise, because of its stable design, this model can handle continuous operation, perfect for commercial or residential use. Also, since it is a compact unit, it has a low profile to provide for visual appeal and functionality. Finally, this system is ETL approved.

• Auto Reverse Sensitivity - adjustable and self-adjustable
• Auto Close Delay - adjustable
• Dual Gate Delay - adjustable
• Timer to Close
• Slave Disable
• 3-Button Station and Station Enable Terminal
• Adjustable Lock Type
• Coast Enable
• Free Exit Option Terminal
• Learn Mode
• Intelligent Actuator Enable
• Microprocessor
• Soft Start and Stop
• Computer Connection
• Gatelink Software Option
• Delay for Siren, etc.
• Radio Receiver Terminals
• Keypad Terminals
• Miscellaneous Options
• Emergency Bypass
• Safety and Shadow Loop Terminals
• Firebox Terminal
• Monitor Lights Terminal
• Lock Terminal
• Siren Terminal
• Strobe Terminal
• Edge Terminal
• Telephone Entry Terminal
• Photoeye Terminal

QB ID: 3500 318Pkg
