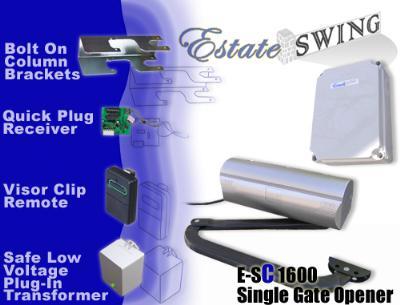

The Estate Swing E-SC1600 Column Mounting Single Swing Gate Opener features a design that specifically accommodates the unique needs of automating a gate mounted on columns.
- Gate Length and Weight - Up to 16' in length or 800 lbs
- Gate Materials - Wood, Steel, Aluminum, Vinyl, Chain Link, and more
- Gate Post or Column Size (pull to open design) - Maximum 6"x6" or gate mounted 3" from rear face of a column (the side facing the property)
- Push to Open - Yes (no additional bracket necessary); setback does not apply to push to open
- Power - Low Voltage Transformer (included; 24V AC) and Backup Batteries (optional; not included)
- Solar Compatible - No; must be within 200' of power source
- Working Temperature: -4 to 131 F
- Cycles per Hour - Continuous Duty; 100+
- Dimensions- Arm: 18.9"x15.35"x1.77"; Motor: 16.14"x5.12"x5.12"
The Estate Swing E-SC1600 Classic Single Swing Gate Opener meets the highest standards in safety. To begin with, the Estate Swing E-SC1600 meets and exceeds UL 325 standards for anti-crushing safety. The diligent observation of safety standards ensures that this Estate Swing electric gate not only meets safety requirements, but also offers superior quality. By offering the highest level of safety, Estate Swing ensures that homeowners and their guests, family, and property are safe and secure, which is its number one priority.
The Estate Swing E-SC1600 also offers convenient operation options. The low voltage system eliminates the need to run 110 AC to the automated gate controller; a low voltage wire that plugs into a household outlet within 200’ of the automatic Single gate opener is sufficient. Eliminating the need for AC power means that this gate operator is a DIY installation, saving homeowners money; a good deal of installation charges is made up of the time it takes, not parts. Power is drawn directly from the 24 V transformer, so this Estate Swing electric gate is capable of constant duty; this means that it can run many cycles consecutively without draining a battery (since the optional batteries are only backup). This kind of reliability is essential for homeowners, who have installed this driveway security gate operator for convenience.
Finally, the Estate Swing E-SC1600 has magnetic limit switches which are more reliable than mechanical limit switches. These limit switches are adjustable, as are the brackets, allowing installation for a variety of situations. Again, all these features make installation and continued operation of this automatic gate opener convenient and easy so homeowners can spend their time on more important aspects of their life. The E-S502 is also compatible with a variety of accessories, for even further convenience.
- Large Opening Arch Capabilities - The Estate Swing E-SC1600 is able to open driveway security gates up to 110 degrees, well beyond most other Single swing gate openers. This large opening arch accommodates driveways that curve in front of the electric gate by allowing room for a vehicle to enter.
- Large, 24V Motor - It is one of the largest swing gate motors available for any residential automated gate opener. It is capable of handling electric security gates up to 600 lbs, which is more than many heavily ornamented automatic driveway gates weigh.
- Advanced Gear System - The advanced gear system is essential to the durability and power of the Single gate opener. The worm gear design of this electric gate motor enhances reliability and control, and cuts down on overall wear and tear on the gate opener motor.
- Adjustable Brackets - The brackets are set up to be easily customized to fit any configuration; push to open, pull to open, back post mounting, side post mounting, etc.
- Adjustable Magnetic Limit Switches - The limit switches on this Estate Swing gate operator are easy to adjust because they are on the exterior of the arm; simply slide them to the desired location and secure by tightening a screw. Secondly, both the open and closed point is adjustable; this allows more flexibility for adjusting the stopping points after the brackets are bolted into place. Lastly, they are magnetic so there are no components to wear out from repeated contact.
- Adjustable Soft Start/Soft Stop - This feature eases the wear and tear on the electronic gate. During a normal cycle, the Single swing opener automatically slows the motion of the driveway security gate near the stop points so the automatic driveway gate closes smoothly and with minimal impact. This Estate Swing electric gate allows the user to manually set an adjustment for when the soft stop begins to allow for faster run times. This feature, too, requires no learning procedure.
- Adjustable Brackets - The brackets are designed to allow easily customized installation for any configuration: push to open, pull to open, back post mounting, side post mounting, etc.
- Quick Plug Radio Receiver - The remote receiver is easy to use and the design means there are no wires to run; just set the dip switch combination and plug it into the board. It is compatible with a number of wireless keypads and intercoms.
- 24 Volt Output Terminals - For convenient addition of accessories requiring power like locks, sensors, and more.
- Quick, Safe and Secure Manual Release - Every Estate Swing gate operator comes with a manual release key that can be used should the power fail and the backup battery is not charged. This ensures that the driveway security gate can be opened without damaging or disconnecting any components.
- Highest Level of Safety - In addition to meeting or exceeding many safety standards, this Estate Swing electric gate's safety devices function on a normally closed circuit. This means that if a safety device does not activate for any reason, the gate door opener will not operate, keeping loved ones and assets safe. Most other openers function on a normally open circuit, which means the consumer does not know the safety device is not working properly until it is too late.
QB ID: E-SC1600
|
