• Gate Length and Weight - Up to 12' in length or 1100 lbs, per leaf
• Gate Materials - Wood, Steel, Aluminum, Vinyl, Chain Link, and more
• Gate Post or Column Size (pull to open design) - Unlimited; positioning requires 2 3/4" clearance from face of post or column to center of hinge, and 2 1/2" of clearance from bottom of the gate to the ground
• Push to Open - Yes, same requirements as pull to open
• Power - Low Voltage Transformer (included; 24V AC) and Backup Batteries (optional; not included)
• Solar Compatible - No; must be within 200' of power source
• Working Temperature: -4 to 131 F
• Cycles per Hour - Continuous Duty; approximately 50
• Dimensions- 17"x8.5"x12"

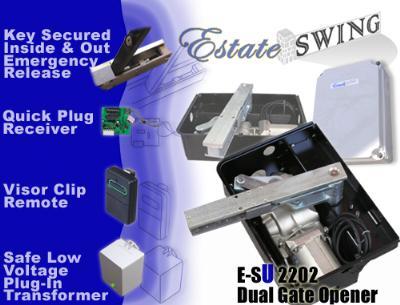

The Estate Swing E-SU2202 Underground Dual Swing Gate Opener meets the highest standards in safety. To begin with, the Estate Swing E-SU2202 meets or exceeds UL 325 standards for anti-crushing safety. The Estate Swing E-SU2202 also meets or exceeds ISO 9000 regulations, which require testing on 100% of all products being produced in a single factory, and all the parts of this invisible gate opener are made in one factory. The diligent observation of safety standards ensures that this invisible gate opener not only meets safety requirements, but also offers superior quality. By offering the highest level of safety, Estate Swing ensures that homeowners and their guests, family, and property are safe and secure, which is its number one priority.

The Estate Swing E-SU2202 also offers convenient operation options. The low voltage system eliminates the need to run 110 AC to the electric gate; a low voltage wire that plugs into a household outlet within 200’ of the operator is sufficient. Eliminating the need for AC power means that this gate operator is a DIY installation, saving homeowners money; a good deal of installation charges is made up of the time it takes, not parts. Power is drawn directly from the 24 V transformer, so this invisible gate opener is capable of constant duty; this means that it can run many cycles consecutively without draining a battery (since the optional batteries are only backup). Again, this feature makes installation and continued operation of this automatic gate opener convenient and easy so homeowners can spend their time on more important aspects of their life. The E-SU2202 is also compatible with a variety of accessories, for even further convenience.

This invisible gate opener is designed to accommodate those homeowners who desire the most appealing entryway or have limited space for setback requirements. Because it operates underneath the automatic dual gate opener, it is nearly invisible and does not require a setback.

• Large Opening Arch Capabilities - The Estate Swing E-SU2202 is able to open driveway security gates up to 180 degrees (with optional brackets; standard brackets allow 110 degree opening), well beyond most other dual swing gate openers. This large opening arch accommodates driveways that curve in front of the electronic gate by allowing room for a vehicle to enter.
• No Required Setback - Most automated gate operators mount to the post which requires a setback for the rear pivot point on the post. This pivot point set back makes it difficult to mount on certain posts and columns or on posts that are against columns or walls. The Estate Swing E-SU2202 is set beneath the driveway security gate, making it possible to automate electric gates with limited space for mounting a linear arm or an articulating arm.
• Large, 24V Motor - It is one of the largest electric gate motors available for any residential automated gate opener. It is capable of handling driveway security gates up to 600 lbs, which is more than many heavily ornamented electric gates weigh.
• Advanced Gear System - The advanced gear system is essential to the durability and power of the dual gate opener. The design of this automated gate motor enhances reliability and control, and cuts down on overall wear and tear on the electronic gate motor.
• Control Board, Easy Read Diagnostics - The LED light diagnostic on the control board permits easy diagnostics of problems or missing connections. This allows efficient repair and swift continuation of normal automatic driveway gate operation.
• One Touch EZ Programming - The Estate Swing E-SU2202 can be programmed by simply pressing one button. The control board is built to be inherently intelligent and learns the open and closing limits automatically. There are no manual adjustments to be made.
• Preset Gate Function Logics - At the touch of a button, alter multiple settings on the dual swing gate opener at once to be focused toward safety, convenience, etc.
• Adjustable Performance Features - Adjust the performance the electric gate opener to fit individual tastes, lifestyle, and needs. Adjust features like pause times, opening/closing delays, static force, etc.
• Quick Plug Radio Receiver - The remote receiver is easy to use and the design means there are no wires to run; just set the dip switch combination and plug it into the board. It is compatible with a number of wireless keypads and intercoms.
• 12 Volt Output Terminals - For convenient addition of accessories requiring power like locks, sensors, and more.
• Quick, Safe and Secure Manual Release - Every underground gate opener comes with a manual release key that can be used should the power fail and the backup battery is not charged. This ensures that the electric security gate can be opened without damaging or disconnecting any components.
• Highest Level of Safety - In addition to meeting or exceeding many safety standards, this invisible gate opener's safety devices function on a normally closed circuit. This means that if a safety device does not activate for any reason, the swing gate opener will not operate, keeping loved ones and assets safe. Most other automated gate openers function on a normally open circuit, which means the consumer does not know the safety device is not working properly until it is too late.
