• Gate Materials: Wood, Steel, Aluminum, Vinyl, Chain Link, and others.
• Weight and length: Up to 16' in length or 800 lbs
• Gate Post or Column size (pull to open): Max 6"x6" post or gate mounted 3" from the rear face of a column.
• Push to Open: Yes (bracket supplied can be used either way) - setback above does not apply to push to open.
• Solar Compatible: No - Must be within 200 feet of outlet
• Power: Low Voltage Transformer(Included) and Backup Batteries (Optional, Not Included)

Estate Swing gate openers are designed to be easy to install for the average handyman. Every unit comes standard with everything needed to automate your gate, including mounting brackets (hardware to affix brackets to column are not included). Included is Estate Swings unique user directed instruction manual. Estate Swing, being closely involved with their customers, they have created the first user driven updateable manual for continuous improvement of installation ease, maintenance and trouble shooting updates. Gate Crafters also brings DIY projects to a new level of simplicity with our 7-day/week technical support and 24/7/365 scheduled installation support.

All Estate Swings are built to the highest standards world wide. Each unit is put through rigorous quality control testing on each component, which are all made and assembled in one factory. The manufacturer is the largest (number one in sales and reputation) in the WORLD and meets or exceeds ISO 9000 regulations, which requires testing on 100% of the products being produced. The Estate Swing E-S 1602 is certified for and exceeds UL325 standards for anti-crushing safety.

The Estate Swing E-S 1602 dual Opener is a low voltage system, eliminating the need to run 110 AC to your gate. Simply run low voltage wire to a household outlet within 200’ of the operator. The E-S 1602 and E-SC 1602 are the only two Constant Duty DIY gate openers on the market.

It is versatile, being used for either push or pull to open, and the safest on the market. The Estate Swing E-S 1602 is designed to be one of the safest gate openers available, perfect for families or individuals concerned with the welfare of others.

The Estate Swing E-S 1602 dual Opener has features never before seen or new to economically priced openers.

• Opening/Closing Soft Stop - Opening/Closing Soft Stop is a feature in which the control board, during the easy set up process, learns where your opening and closing points are for the swing of the gate. Then during normal operation the gate operator automatically slows the motion of the gate to smoothly meet with the gates destination point.
• Large 24V Motor - The motor of the E-S 1602 is one of the largest found on any residential gate opener. It is well equipped to handle gates up to 800 lbs, more weight then found in many heavily ornamented gates.
• Extended Setback - Most gate operators have a required setback for the rear pivot point on the post. This pivot point set back many times makes it difficult to mount on columns. The E-S 1602 has an extended setback, allowing it to be mounted to most columns or posts. PLUS custom mounting brackets are available for purchase, taking the custom work out of your project and putting the works in our hands.
• Large Opening Arch Capabilities - The E-S 1602 has the ability to open gates up to 110 degrees, well beyond most other openers.
• Advanced Gear System - The gear system is one of the most important parts of a gate opener; it influences power, control, reliability, and the life span of the motor. The E-S 1602 uses an advanced worm gear system cutting down on bearing wear and motor deterioration.
• All Weather Compatible - This arm can handle the cold, heat and everything in between.
• One Touch EZ Programming - The Estate Swing E-S 1602 can be programmed by simply pressing one button. The control board is built to be inherently intelligent and learns the open and closing limits automatically. There are no manual adjustments to be made!
• Highest Level of Safety - The Estate Swing E-S 1602 automatically reverses directions when it comes in contact with an obstruction. The Estate Swing E-S 1602 also has the safest method of controlling safety devices. All safety devices are set up on a Normally Closed circuit. Some gate openers are set up on a normally open circuit. What this means is that the Estate Swing E-S 1602 is virtually fail-safe. If a safety device does not activate for any reason the Estate Swing E-S 1602 will not operate, keeping your loved ones and assets safe. Gate openers with safety devices set up on a Normally Open connection will operate with the disabled safety device and the consumer will not know the safety device is inactive until it is too late!
• Quick, Safe and Secure Manual Release - Every unit comes with a key chain ready manual release key. In the rare case power has failed and the back up battery is not charged, the manual release key can be used to safely open your gate without damaging your opener arm or disconnecting anything from your gate.
• Preset Gate Function Logics - At the touch of a button you can change multiple settings on your gate opener to be focused towards safety, convenience, etc.
• Adjustable Performance Features - Adjust the performance of your gate opener to fit your tastes, lifestyle and needs. You can adjust Pause Times, Opening/Closing Delays, Static Force and much more.
• 24 Volt Output Terminals - Convenient for accessories requiring power. i.e. locks, sensors, etc.
• Control Board, Easy Read Diagnostics - To save you time and trouble, FAAC has included a LED light diagnostic on the control board. This lets you know if connections are or are not made to quickly diagnose problems and efficiently fix them to resume normal gate operation.
• Quick Plug Radio Receiver - The easiest receiver to use on the market. There are no wires to run, simply set your dip switch combination and plug it into the board.

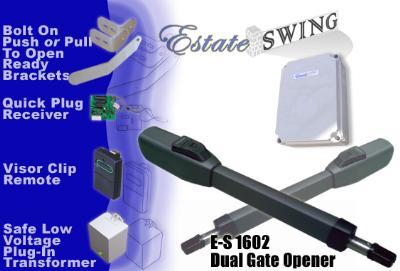

Included With the Gate Opener from the Manufacturer

• Control Box
• Operator arms with power cable
• Control Board
• Manual Release Keys
• Low Voltage Transformer

Exlusive Additions by ArtisticGateConcepts.com

• 318Mhz Deliberate Attempt Receiver
• 2) 318Mhz Deliberate Attempt Transmitter
• Adjustable, bolt on mounting brackets
• Mounting Hardware
• Instruction Manual, Public Warning Sign, Quick Check color wiring diagram, and setback cutout
• Free 24/7/365 Installation Support
• Limited 5 year mechanical warrantee on ALL Estate Swing openers.
• Free 7 day/week Technical Support
• Largest Number of Certified Techs in America
• Free assistance to find the right gate opener for your gate
• Free systems design assistance to match the right accessories to fit your needs.
• Extremely competitive pricing
• Free shipping on all accessories purchased with a gate opener
• We stock all replacement parts
• Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
